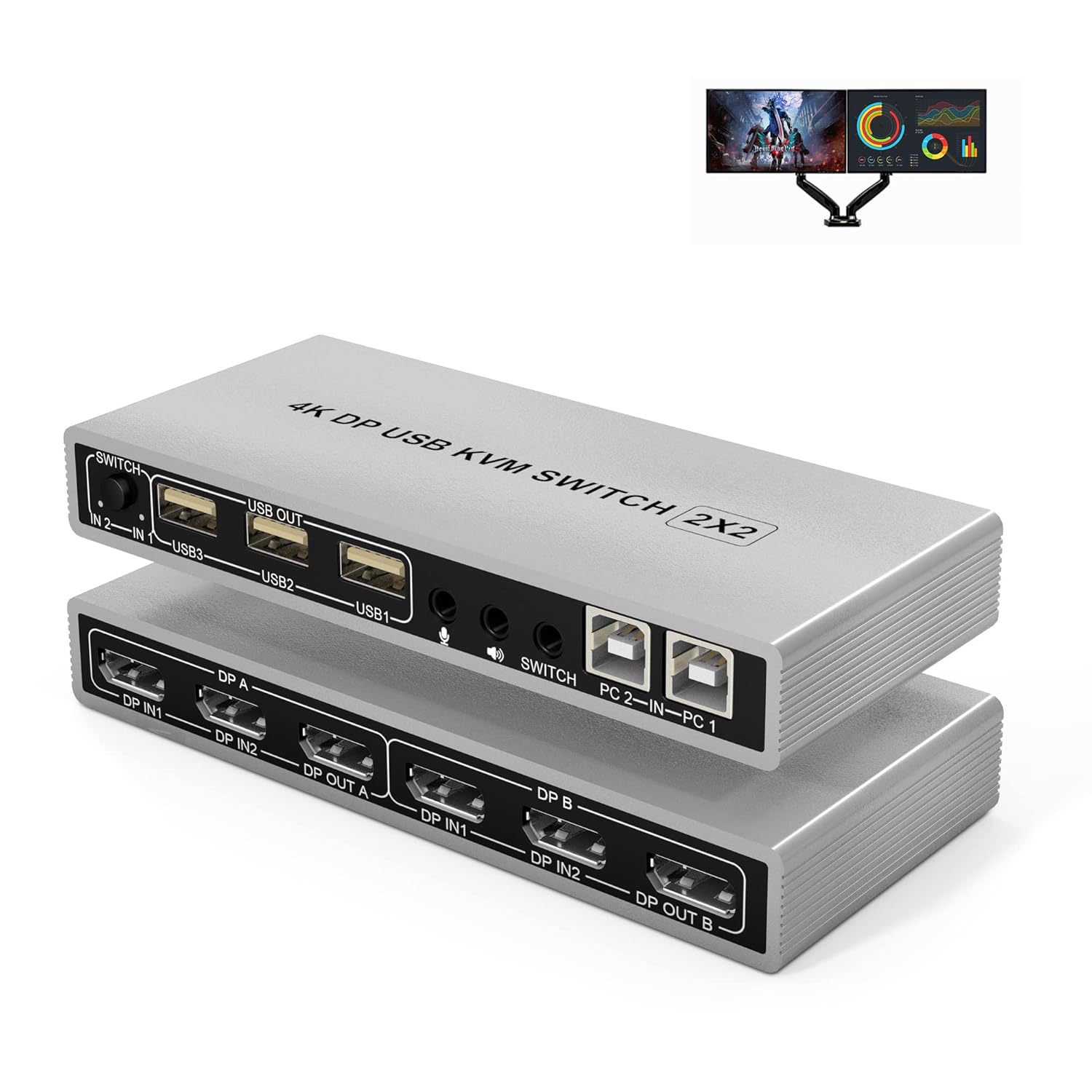

KVM Switch Dual Monitor DisplayPort 4K 60Hz Extended Display, USB Hub & Audio Output a7
KVM Switch Dual Monitor DisplayPort 4K 60Hz Extended Display, USB Hub & Audio Output a7
【Displayport KVM Switch 2 Monitors 2 Compute】This Dual Monitor Displayport KVM Switch help you control 2 PCs share 2 monitors (Extend display mode or copy display mode) by only one set of USB keyboard & mouse, under the condition of your computers or laptops support multi-display or dual display. If your computer has only one DP output, you can use a conversion cable, such as DVI/VGA/HDMI to Displayport cable etc.
【KVM Switch Dual Monitor Displayport 4K@60hz Visual Enjoyment】This small & exquisite kit supporting high resolution max up to 4K@60Hz, and also supports 3D and 1080P@60Hz or other lower resolution (Downward Compatible).supports separate audio and microphone output. Note: Only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices first.
【Two switching methods and strong compatibility】Quickly switch between the 2 computers with just one click of the switch button and no extra operations. Not support keyboard switch, avoid hotkey conflicts. A button-controlled switch extension cord is presented, so you don’t have to get up and switch easily when you use it.Our products include 2 USB-B cables,1 switch button cable, and 1 power adapter.It adapt to a variety of mainstream systems, Windows 10/7/2000/XP, Mac, LUNIX, UNIX.
【Driver Free KVM Displayport Switch With USB 2.0 HUB】Plug and play with no driver needed: include all cables and DC 5V power adapter, with extra USB 2.0 port for sharing USB printers, scanners and jump drives, wireless and gaming keyboard mouse.
【18 months warranty】Only when your computer supports dual display or multi display, you can use this product to achieve two computers to share two monitors, extended mode or copy mode. If your computer only supports single display, then this product cannot help you get dual display function. Tips: If you encounter problems when using the adapter connection, please contact us for after-sales support in time, please rest assure we will offer you a satisfied solution.
2 Port Dual Monitor KVM Switch Displayport 4K@60Hz
Product Features:

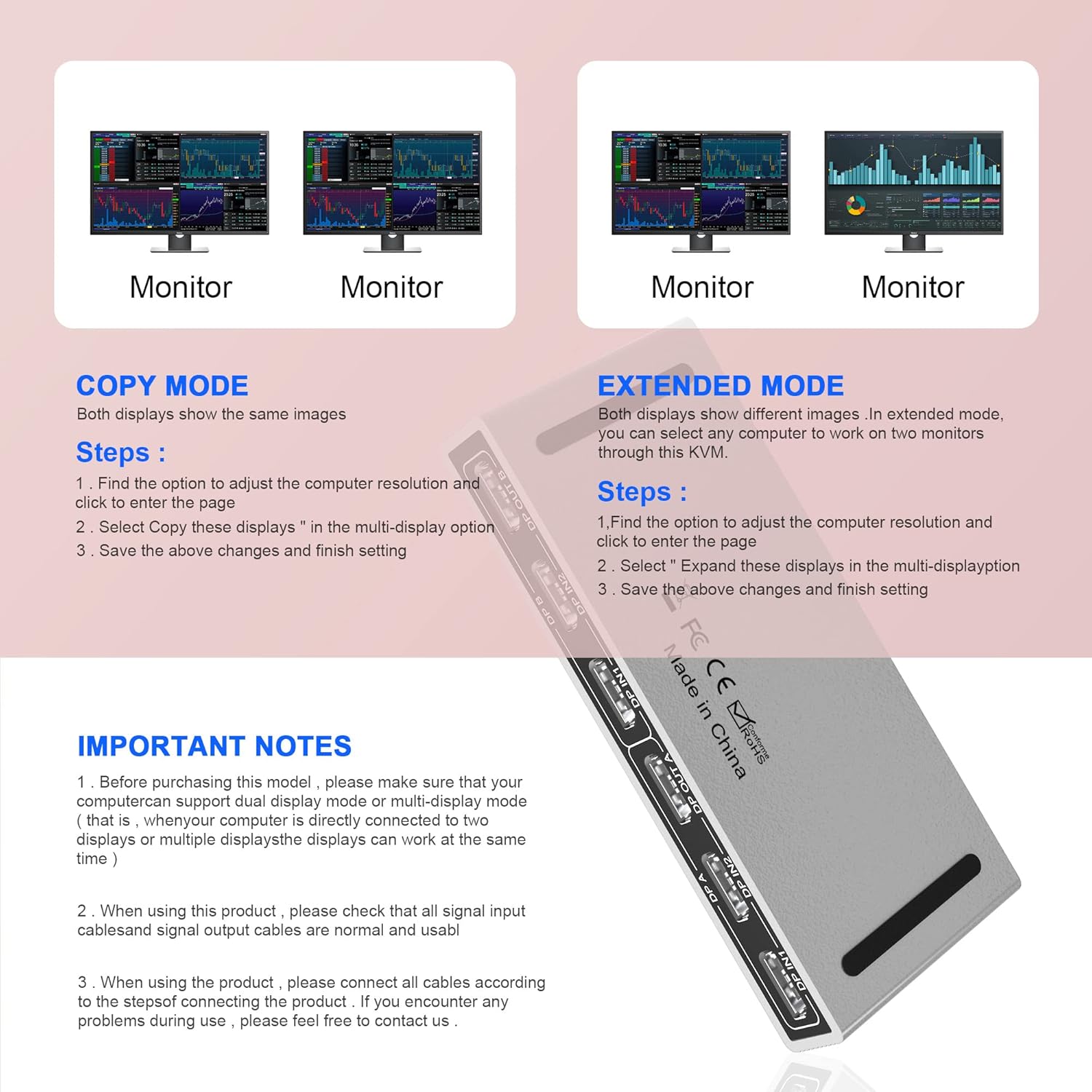

Dual monitors output support up to 4K@60Hz for extended,mirrored or spliced display

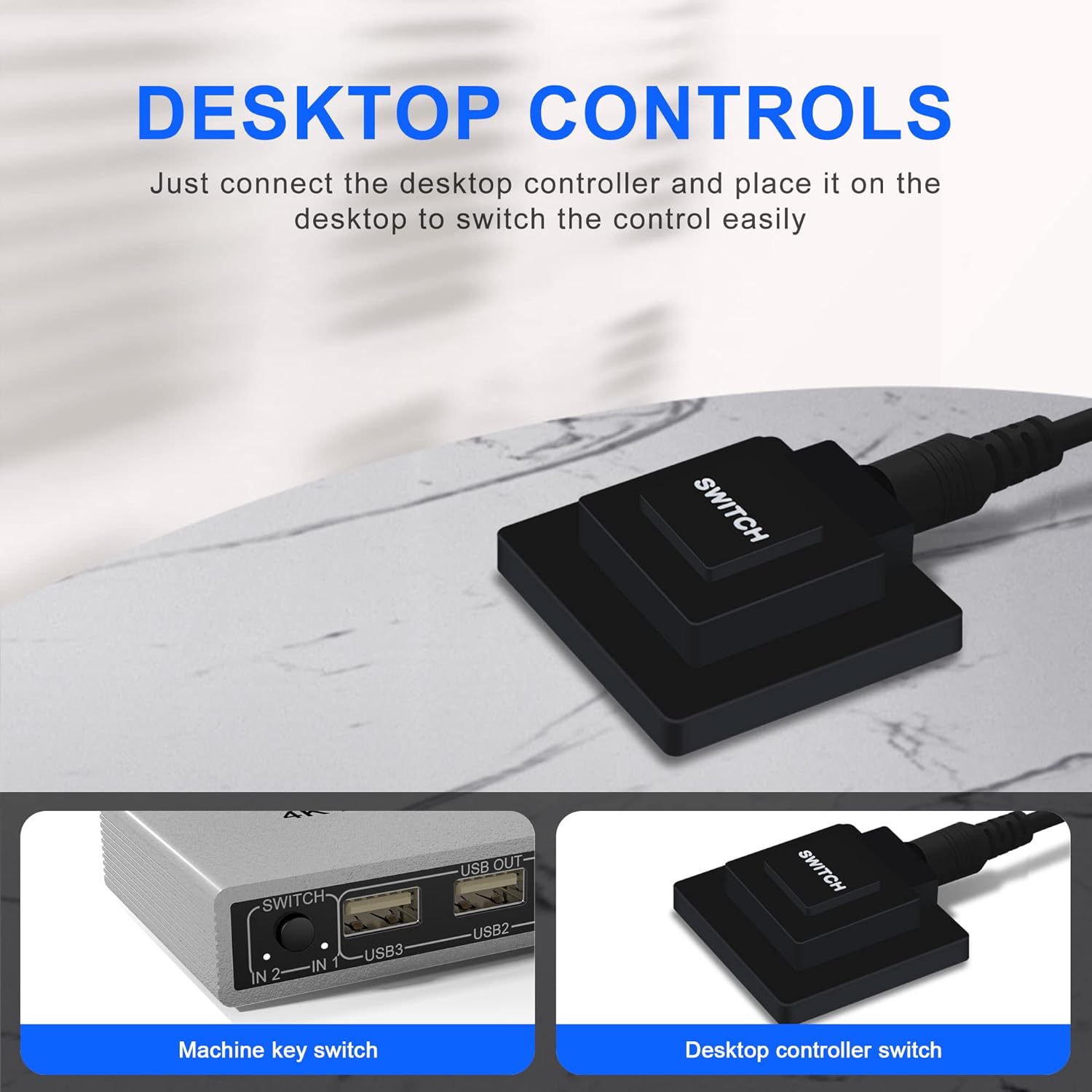

Switching modes: Buttons on the front panel and wired remote

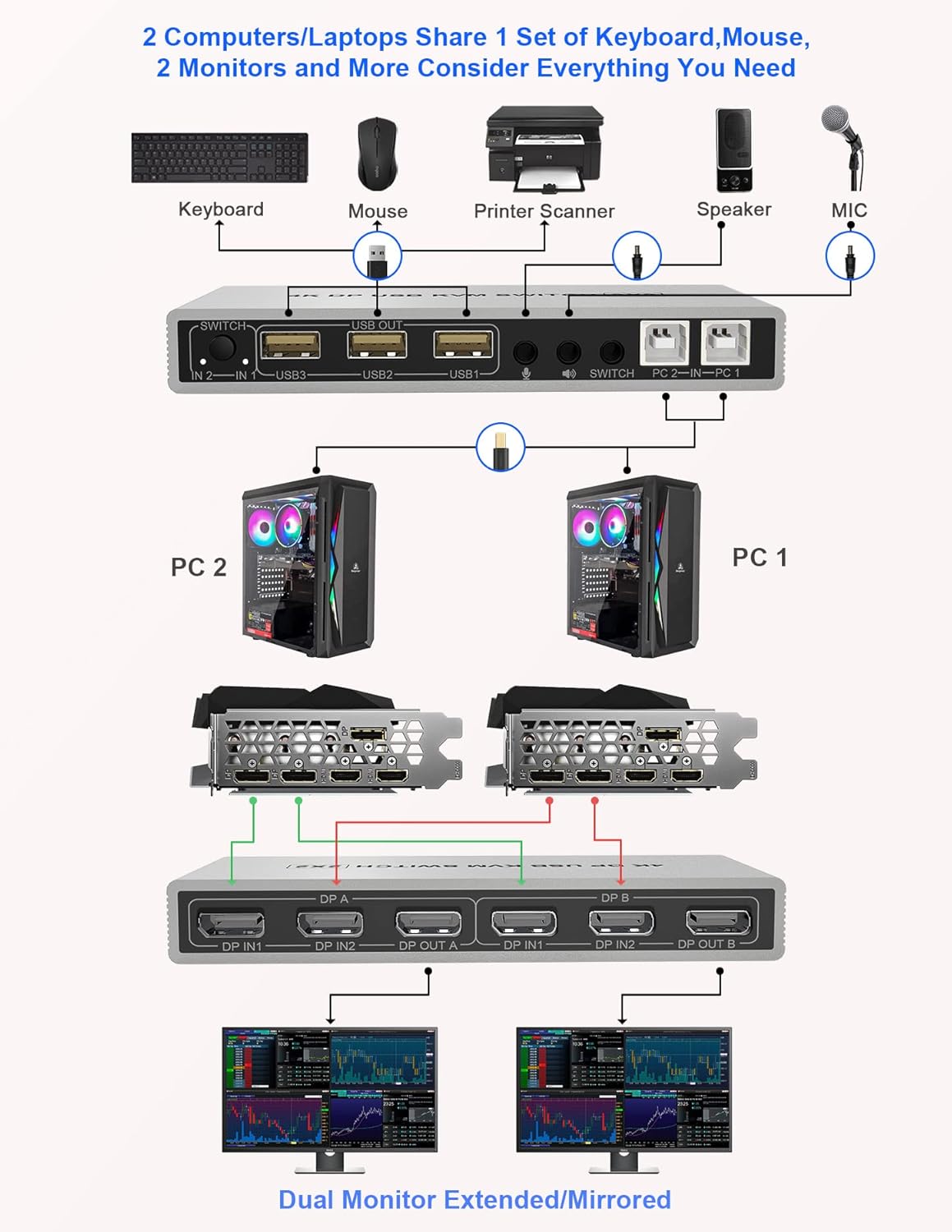

2 computers / laptops share one set of keyboard, mouse and 2 monitors
Cross support most major OS including Windows, Linux, Mac
With extra USB 2.0 HUB and Audio Microphone output.

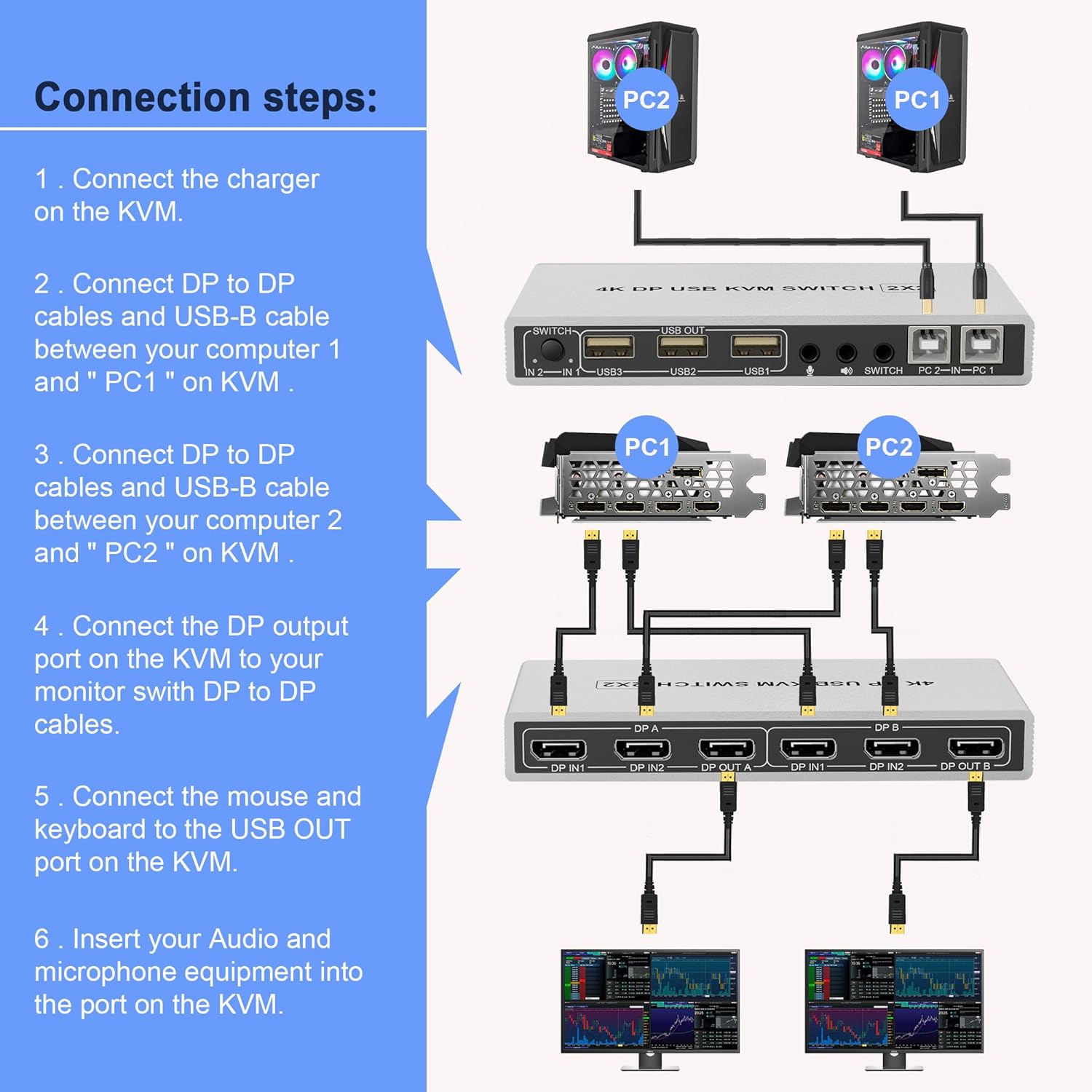

Installation Proceedures:
Power off everything before installation;
Computer 1: Connect 2 DP outputs from computer 1 to DP IN 1 A and DP IN 1 B ports; Connect USB A-male to USB 3.0 port on computer 1, and USB B-male to USB 1 input on the KVM switch;
Computer 2: Connect 2 DP outputs from computer 2 to DP IN 2 A and DP IN 2 B ports; Connect USB A-male to USB 3.0 port on computer 2, and USB B-male to USB 2 input on the KVM switch;
Primary Monitor: Connect primary monitor to DP Out A;
Extended Monitor: Connect extended monitor to DP Out B;
Keyboard and Mouse: Connect keyboard and mouse into USB keyboard and mouse port respectively;
Connect USB peripherals to USB 2.0 ports if needed (optional);
After cables being connected, power on the kvm switch first, then monitors, then computers.
Important Note：
1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 2 DP cables connect to the KVM.
2. If it is normal working, then thereis a sudden failure, please unplug all the cables and plug again.
3. If computer does not have enough DP ports, please try to use DVI/ VGA/ DP/ Type-C to DP adapter.

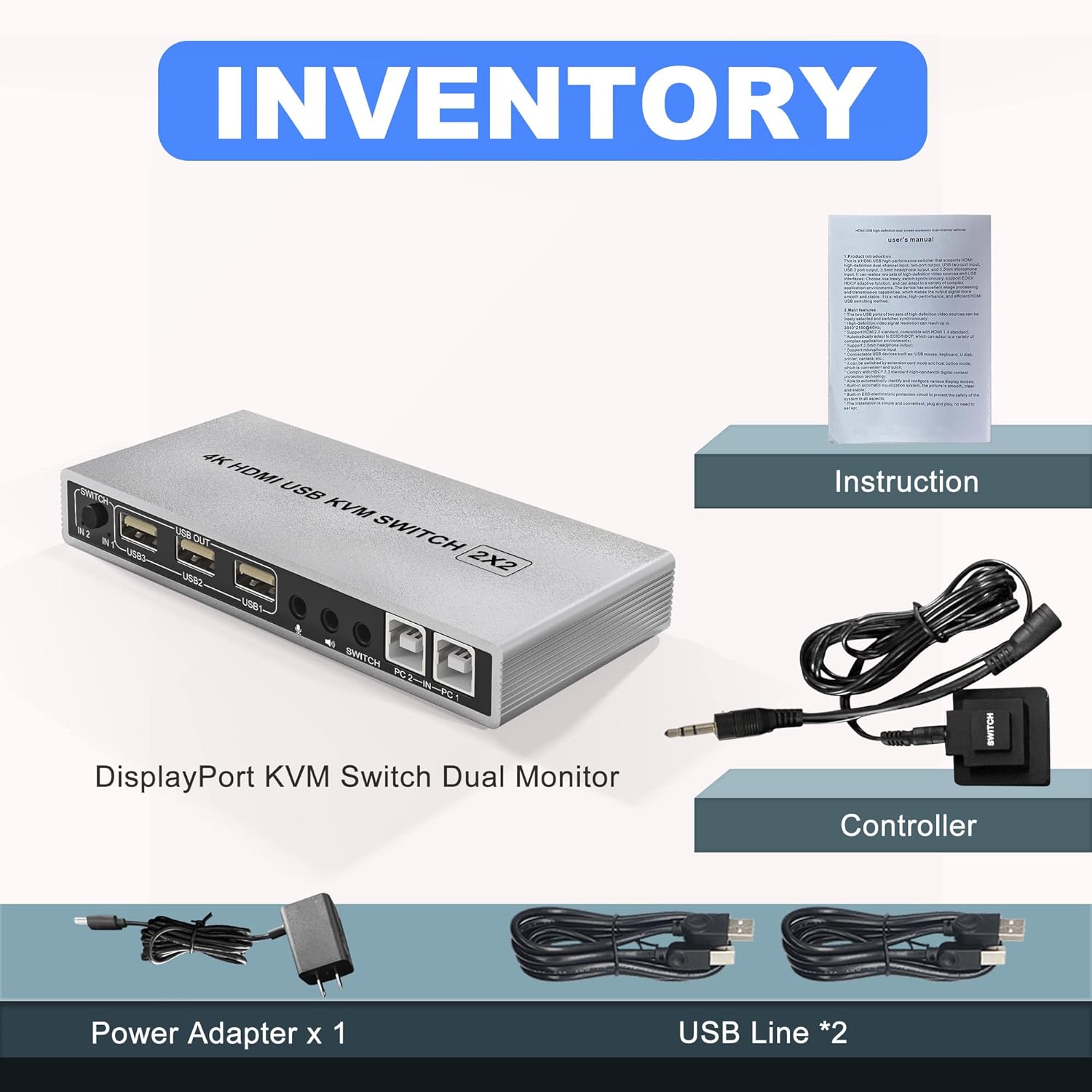

What's in the Box:
(1) 1x DP 1.4 KVM dual monitor Switcher
(2) 2x USB a-b Cables
(3) 1x User manual
(4) 1 x switch button cable
(5) 1 x power adapter
